Overview

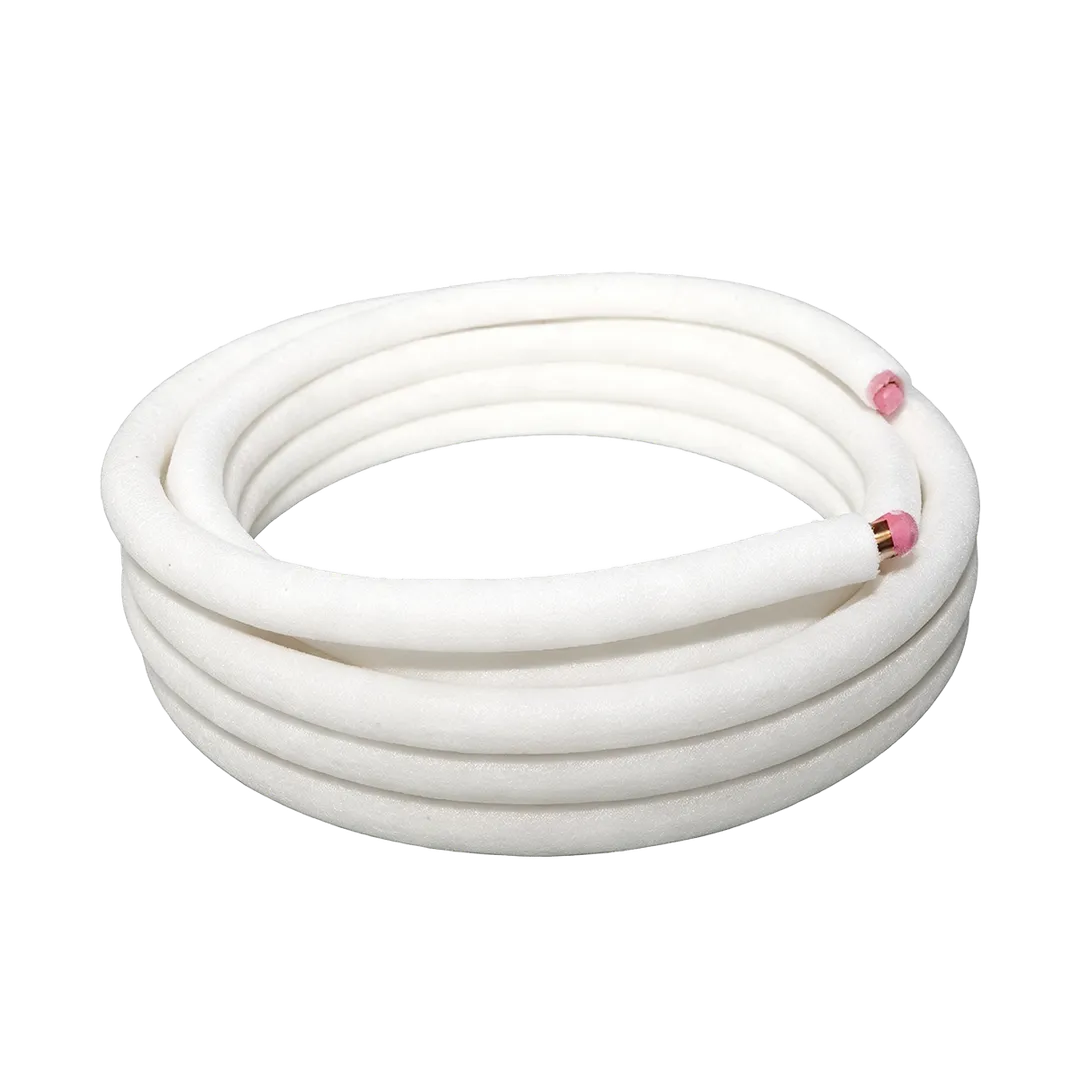

The IDP HVAC Type D Insulated Line Set is a pre-insulated copper tubing assembly for mini-split AC and heat pump systems. Each coil is 164ft (50m) of annealed copper with 1/2″ closed-cell PE foam insulation, supplied without flared nuts for field-flaring to your unit’s requirements.
Key Features
- Annealed copper tubing, clean ends ready to flare
- 1/2″ closed-cell PE foam insulation, UV & moisture resistant
- Available liquid-line sizes: 1/4″, 3/8″, 1/2″, 5/8″
- 164ft (50m) coil — cut to length on site
- Without flared nuts (nuts & ferrules sold separately)
- 4 models: D1412164 / D3812164 / D1212164 / D5812164
Specifications
| Model (SKU) | Tube Size (Liquid) | Length | Insulation |
|---|---|---|---|
| D1412164 | 1/4″ x 1/2″ | 164ft | 1/2″ |
| D3812164 | 3/8″ x 1/2″ | 164ft | 1/2″ |
| D1212164 | 1/2″ x 1/2″ | 164ft | 1/2″ |
| D5812164 | 5/8″ x 1/2″ | 164ft | 1/2″ |
Model Number Decoding
Example D1412164: D = Type D · 14 = 1/4″ tube · 12 = 1/2″ (suction/insulation) · 164 = 164ft coil.
Compatible With
Mini-split and ductless heat pump systems 9k–36k BTU. Match the tube (liquid-line) size to your outdoor unit nameplate; field-flare and cut the 164ft coil to the required run length.
Installation Notes
- Without flared nuts — flare ends on-site with a proper flaring tool; follow torque specs.
- 164ft coil lets you cut exactly to length — measure total run before cutting.
- Inspect insulation jacket for damage before installation; repair any tears.
- Custom-cut or opened line sets are non-returnable per our Terms.
FAQ
Q: Does this include flared nuts?
A: No. Standard plain-end version; nuts and ferrules are sold separately.
Q: Is the 164ft length fixed?
A: Yes — supplied as a 164ft (50m) coil; cut to your actual run length on site.
Q: What’s the insulation thickness?
A: 1/2″ closed-cell PE foam on all four models.
