Product Overview
The LC100-8 Wall Hole Cover finishes the opening where the line set goes through the wall. The extended profile covers the hole and the raw cut edge around it, so the penetration looks intentional rather than drilled.
Use it on the outside face of the wall at the line set entry point.
Specifications
| Model | LC100-8 |
|---|---|
| Part Name | Wall Hole Cover |
| System | LC100 line set cover / duct trunking |
| Material | PVC |
| Colour | White |

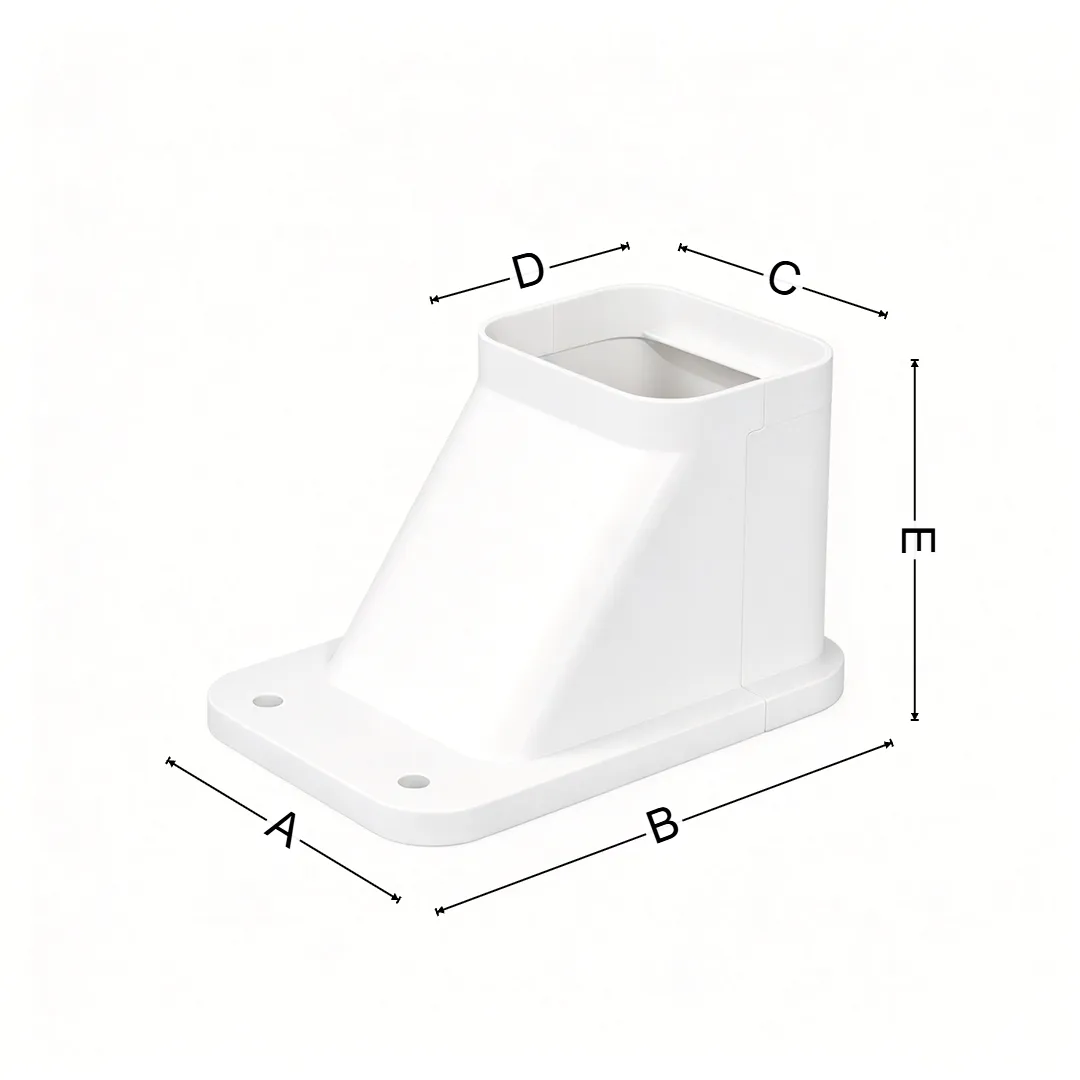

| A | 140 mm |
| B | 72 mm |
| C | 112 mm |
| D | 142 mm |
| E | 82 mm |
| Dimensions (A x B x C x D x E) | 140 × 72 × 112 × 142 × 82 mm |
| Application | Mini-split refrigerant lines, drain hose and control cable |
Key Features
- Moulded PVC — weather resistant, UV stable, will not rust
- Snaps into the LC100 profile — no adapters between fittings
- Wider 100 mm profile — holds more lines and thicker insulation than the 75 mm series
- Hides and protects the line set — covers refrigerant lines, drain hose and cable in one run
- Clean finished look — turns an exposed line set into a neat trunking run
- Cuts and drills easily — trim on site with a saw
Applications
- Mini-split and heat pump line set runs on exterior walls
- Multi-zone runs carrying several line sets side by side
- Covering refrigerant lines, condensate drain and control cable together
- Retrofit tidy-ups on existing exposed line sets
What’s in the Box
- One LC100-8 Wall Hole Cover
Installation Tips
- Dry-fit the whole run first, then snap the pieces together in order
- Cut straight sections square so joints close flush
- Fix the trunking to the wall at regular intervals, especially before and after every fitting
- Seal wall and ceiling entry points with silicone where the line set passes through
